Spray Nozzle

NFV

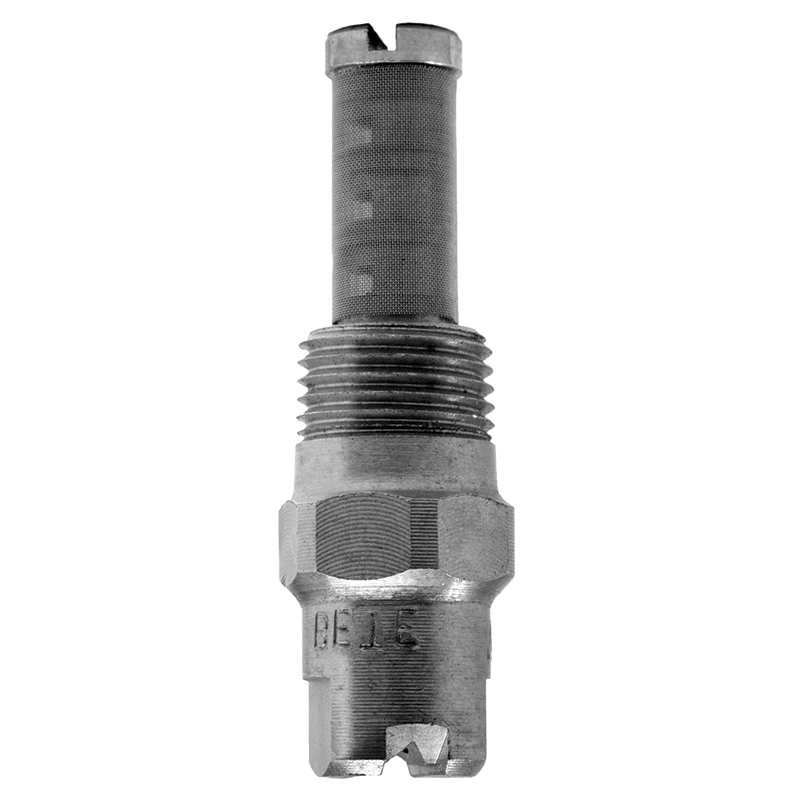

NFV Flat Fan Nozzle With Integrated Strainer

NFV Stubby Fan Nozzle

The NFV is a flat fan spray nozzle with an integrated strainer. Due to this it has excellent clog resistance and very low maintenance requirements. The NFV can be used in many applications including:

  • Lubrication
  • Moistening
  • Product cooling
  • Cleaning
  • And many more.

pdf_ic

Design Features

    • One-piece construction
    • No internal parts
    • Male connection
    • Low nozzle maintenance
    • Optional removable strainer for easy cleaning
    • Connections: Male NPT and BSP
    • Optional Strainer: 50, 100, 200 mesh

Spray Characteristics

    • High impact
    • Uniform distribution
    • Spray pattern: Flat Fan and Straight Jet
    • Spray angles: 0°, 15°, 25°, 40°, 50°, 65°, 80°, 95°, and 110°
    • Flow rates: 0.15 to 49.85 l/min
    • NFV0067: Max. spray angle available 95°

NFV Flat Fan Nozzle With Integrated Strainer
