Orbitor 2

Two nozzle rotary jet tank cleaner

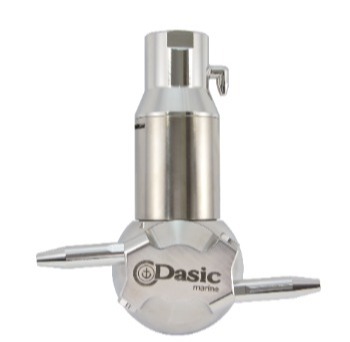

Orbitor 2 - rotary jet tank cleaner

The Orbitor 2 is a fully self-cleaning machine made from food / pharmaceutical-grade hygienic materials. It is typically used in food processing, beverage, pharmaceutical and chemical processing applications but it can be configured to clean tough residues in almost any industrial application. The two-nozzle configuration means that larger nozzles with higher flow rates can be deployed extending the jet length to 20 metres. The Orbitor 2 is one of the only tank cleaners that is ATEX-certified for use in all zones and temperatures.

pdf_ic

Design Features

    • Entirely fluid driven - no external power source is required
    • Self lubricating
    • Easy to maintain. Can be stripped and reassembled in 15 minutes.
    • ATEX certified zones 0 and T6
    • Self-cleaning and hygienic design suitable for food and pharmaceutical application

Spray Characteristics

    • Flow rates: 80 - 600 l/min
    • Working Pressure: 3 - 10 bar
    • Jet length: Up to 20 metres
    • Wash pattern: 360° j Cycle times: 15.5 - 33 minutes
    • Materials: - Housing: 316L - Nozzle Head: 316L - Gears: PEEK + 316 SS - Bushings: Carbon Filled PTFE
    • Weight: 8Kg
Orbitor 2 data image
