Orbitor 4

Two nozzle rotary jet tank cleaner

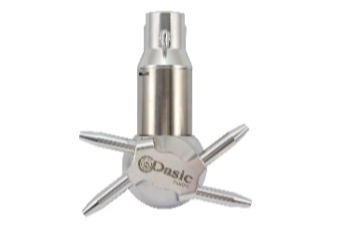

Orbitor 4 - rotary jet tank cleaner

The Orbitor 4 is a fully self-cleaning machine and is made from food/ pharmaceutical grade hygienic materials. It delivers powerful cleaning jets up to 13 metres in length. Its four-nozzle configuration means that cycle times are reduced when compared to the 2 nozzle machine. The Orbitor 4 is one of the only tank cleaners that is ATEX certified for use in all zones and temperatures

pdf_ic

Design Features

    • Entirely fluid driven - no external power source is required
    • Self lubricating
    • Easy to maintain. Can be stripped and reassembled in 15 minutes
    • ATEX certified zones 0 and T6
    • Self-cleaning and hygienic design suitable for food and pharmaceutical applications

Spray Characteristics

    • Flow rates: 80 - 458 L/min
    • Working Pressure: 3 - 10 bar
    • Jet length: Up to 13 metres j Wash pattern: 360°
    • Cycle times: 5.5- 15.5 minutes



    Materials:

    • Housing: 316L
    • Nozzle Head: 316 SS
    • Gears: PEEK + 316 SS
    • Bushings: Carbon Filled PTFE
    • Weight: 8Kg
