HydroPulse Air Actuated Nozzles (PHP)

HydroPulse air actuated spray nozzles

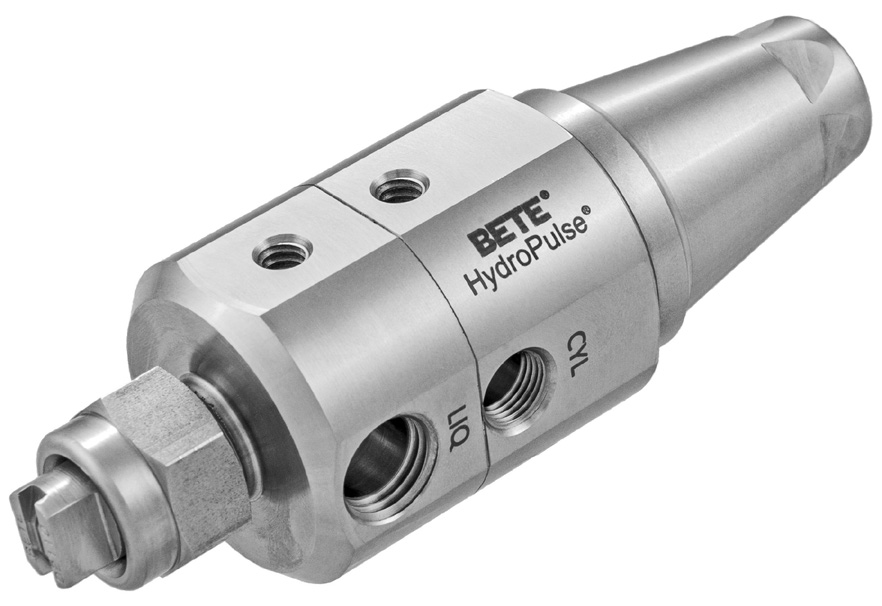

The HydroPulse is a pneumatically actuated flat fan spray nozzle. The HP can be fitted with a wide variety of different spray tips, with a variety of spray angles and flow rates. The addition of a spring loaded shut off system allows this nozzle to be cycled on and off rapidly making it suitable for precision spraying applications including:

  • Coating
  • Lubricating
  • Moistening
  • And more.

pdf_ic

Design Feature

    • Precise intermittent spray uses liquid pressure as the force for atomisation
    • Interchangeable flat fan, full cone or hollow cone nozzle tips: BJ, BJH, CW and ST
    • Pneumatically actuated for precise on/off spray directly on the target
    • Straight through porting for fluid recirculation
    • Hygienic connections and mounting brackets options


Spray Characteristics

    • Spray patterns: Flat Fan, full cone or hollow cone
    • Max flow rate: 57.7 l/m
    • Max liquid pressure: 42 bar
    • Operating temp: -26° to 204°CAir cylinder pressure: 2 to 17 bar
    • Material: 316 ss wetted components, Viton® (FKM) seals
    • Connection: ¼” NPT or BSPP, liquid; ⅛” NPT or BSPP, cylinder air; or DN10 tri-clamp
