Spray Nozzle

STXP

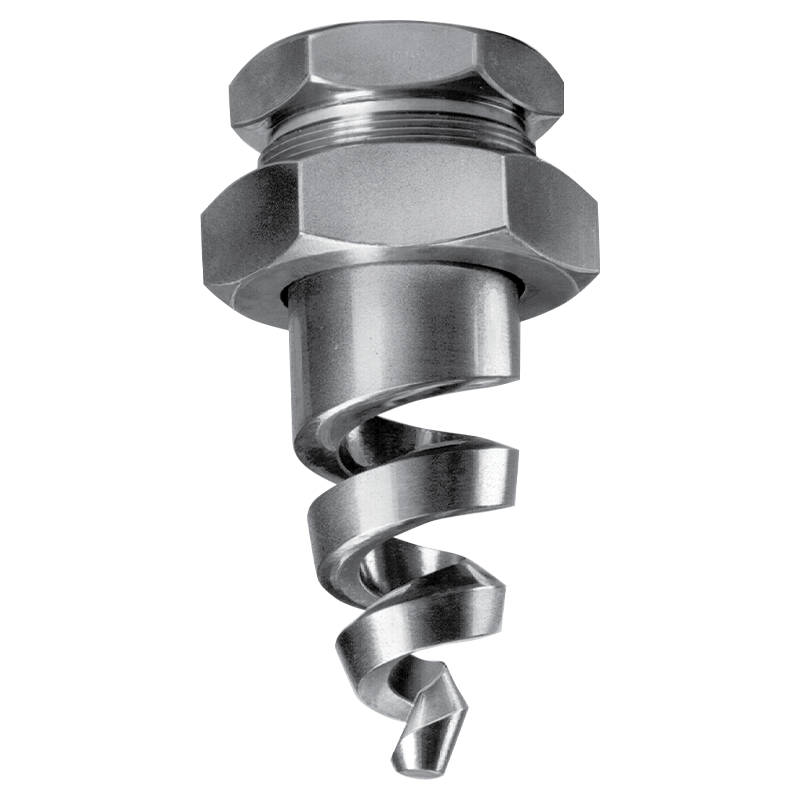

STXP - Extra wide passage abrasion-resistant spiral spray nozzle

STXP - Extra wide passage abrasion-resistant spiral spray nozzle

The STXP nozzle is a special spiral full cone nozzle that is designed to be abrasion resistant and with addtional clog resistance. It produces an approximate full cone pattern with good atomisation and is available in a large range of flow rates and spray angles. STXP nozzle are used primarily in gas scrubbing and polution control applications but would be a suitable choice in any application where abrasion is a concern.

pdf_ic

Design Features

    • Abrasion resistant
    • Cobalt Alloy 6 or RBSC ceramic parts in high-wear areas
    • High energy efficiency
    • Largest free passage in spiral design
    • Extra heavy, rugged construction
    • Male and female connections
    • Flanged and special connections available as required

Spray Characteristics

    • Fine atomisation
    • Spray pattern: Full Cone (Hollow Cone available by special order)
    • Spray angles: 90° and 120° standard
    • Flow rates: 9.67 to 10700 l/min (Higher flow rates available)
Abrasion resistant extra wide free passage spray nozzle
