Tangential Inlet Hollow Cone Nozzle

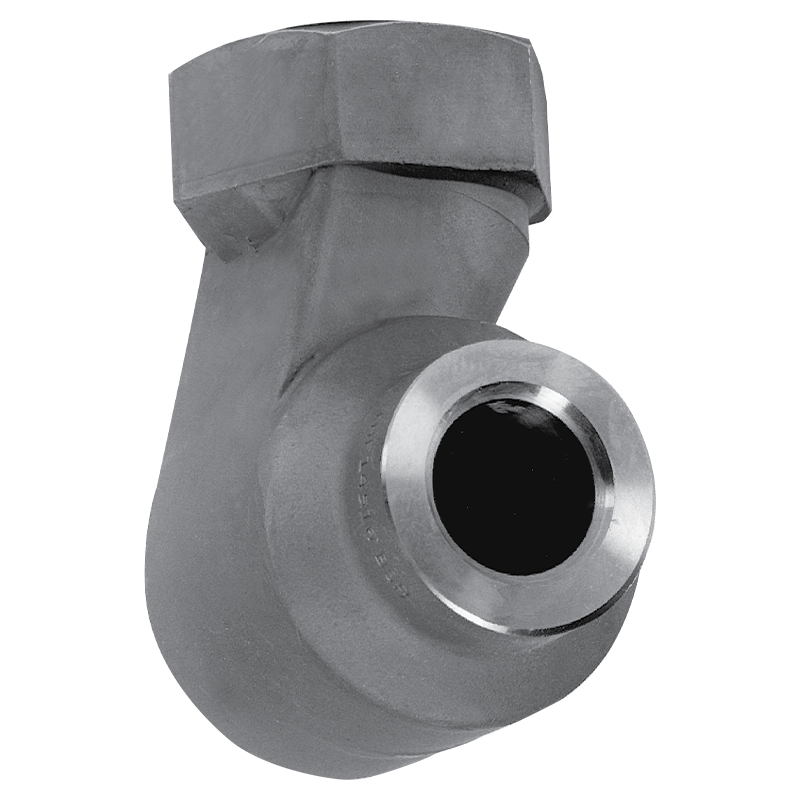

TH Tangential Inlet Hollow Cone Nozzle

The TH nozzle is a tangential inlet, high flow rate spray nozzle that produces a hollow cone pattern. It is manufactured in a range of metals and also in silicon carbide. A heavy duty, clog resistant and robust nozzle suitable for tough environments. It finds uses in several applications including:

  • Absorber Sprays
  • Cooling Ponds
  • Gas Scrubbing
  • Pollution Control
  • And more.

pdf_ic

Design Features

    • Large free passage
    • Clog-resistant; nozzles have no internal parts
    • One-piece construction
    • Female connection
    • Flanged connection available
    • Silicon carbide available upon request
    • Inlet and outlet are in-line and are tangential to each other

Spray Characteristics

    • Patented geometry designed to give the most uniform liquid distribution around the periphery of the spray.
    • Spray pattern: Hollow Cone
    • Spray angles: Narrow to Medium
    • Flow rates: 15.3 to 2230 l/min
