UltiMist

Misting Nozzle

Misting Nozzle

The UltiMist is a misting nozzle that produces a fine fog spray pattern. It is available in metal (stainless steel tip and brass adapter) and plastic (polyacetal). The UltiMist can be used in any application where small drop size is required including:

  • Moistening
  • Evaporative
  • Cooling
  • Odour Control
    And many more.

Click below to see the datasheets in the following order: Metal, Plastic

pdf_ic
pdf_ic

Design Features

  • Metal:

    • 416 Stainless Steel tip
    • Brass adapter - 1/8” and 1/4” sizes
    • Male or female connections
    • 1/8” and 1/4" sizes
    • Male or female connections
    • Integral 100 mesh strainer

    Plastic:

    • All plastic construction
    • 1/8" male connection

Spray Characteristics

    • Very fine, fog-like mist
    • Produces high number of droplets under 60 microns
    • Spray pattern: Hollow Cone, Medium angle

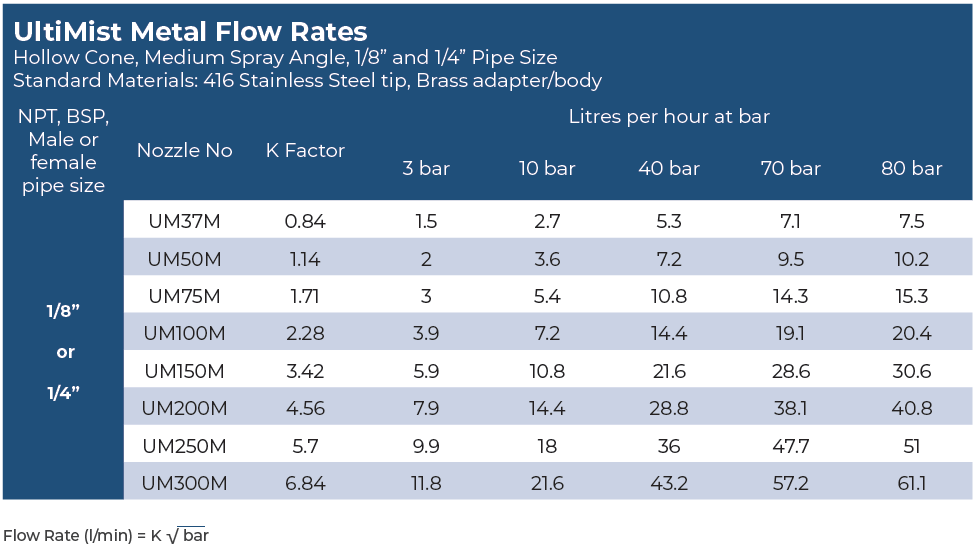

    • Flow rates:
      - Metal - (1.5 - 61.1 L/hr)

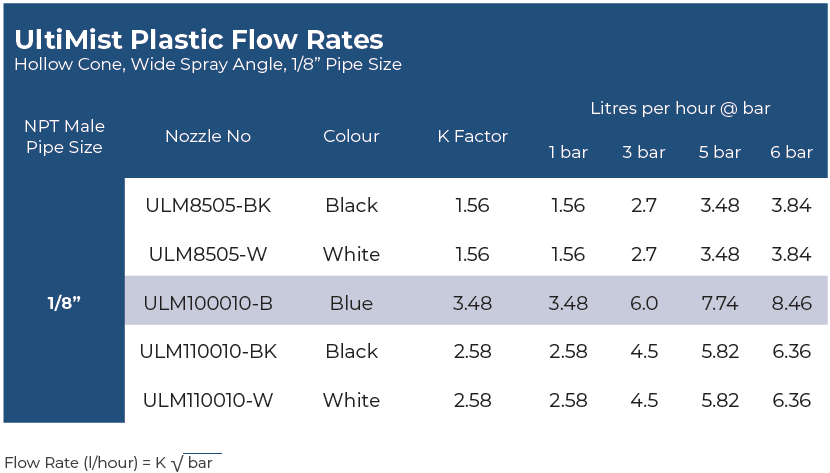

      - Plastic - (2.5 - 32.6 L/hr)
