Spray Nozzle

MK2

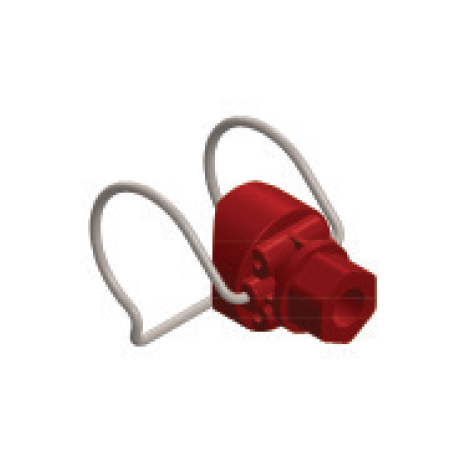

Unispray Mark 2 Fixed Clamp On Nozzle Holder

Unispray Mark 2 Fixed Clamp On Nozzle Holder

The MK2 nozzle holder is a handy way to attach spray nozzles to pipe work. The holder clamps around the pipe and a spigot with an o-ring inserts into a pre-drilled hole in the pipe. This attaches the clamp holder and forms a seal suitable for liquid pressures up to 4 bar (6 bar for the double clamp). The holder has a female thread to take any threaded nozzle. This product eliminates the need for threads to be tapped into pipe work, saving time and money.

pdf_ic

Design Features

    • Clamp on nozzle holders.
    • Available with 1/8”, 1/4” , 3/8” or 1/2” female threads to take suitable male threaded nozzles
    • Wide threaded nozzles available
    • Single clamp suitable up to 4 bar pressure
    • Double clamp suitable up to 6 bar pressure
    • Clamps suitable for 1”, 1 1/4”, 1 1/2” and 2” nominal bore pipe

Benefits

    • No need to thread into pipe work
    • Easily removable for maintenance
