Spray Nozzle

XAAD

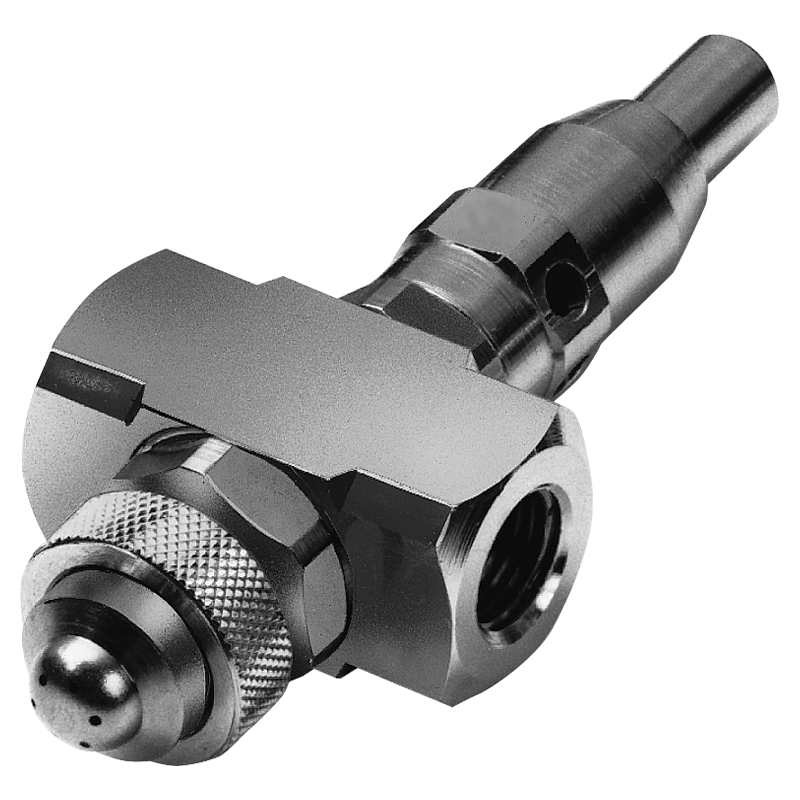

XAAD Hollow Cone Air Atomising Nozzle

XAAD Hollow Cone Air Atomising Nozzle

The XAAD air atomising nozzle produces a very finely atomised hollow cone spray pattern. It produces the finest droplets of all our air atomisers. This makes it suitable for any applications where a small droplet size is of paramount importance including:

  • Moistening
  • Humidifying
  • Disinfection
  • Fogging Coating
  • Dust Control
  • And more.

Design Features

    • Requires pressurised air and fluid to operate
    • Internal mix
    • Modular design allows swapping between nozzle type by changing air and fluid caps
    • Different body options with variable inlet orientations
    • Adaptor for mounting the nozzles through walls
    • Optional air shut off system
    • Optional clean out pins

Spray Characteristics

    • Spray pattern: Hollow cone
    • Spray angles: 70°
    • Flow rates: 1.7-93 l/hr
    • Very fine atomisation
    • Moderate forward spray projection
