Full Cone External Mix Air Atomising Nozzle

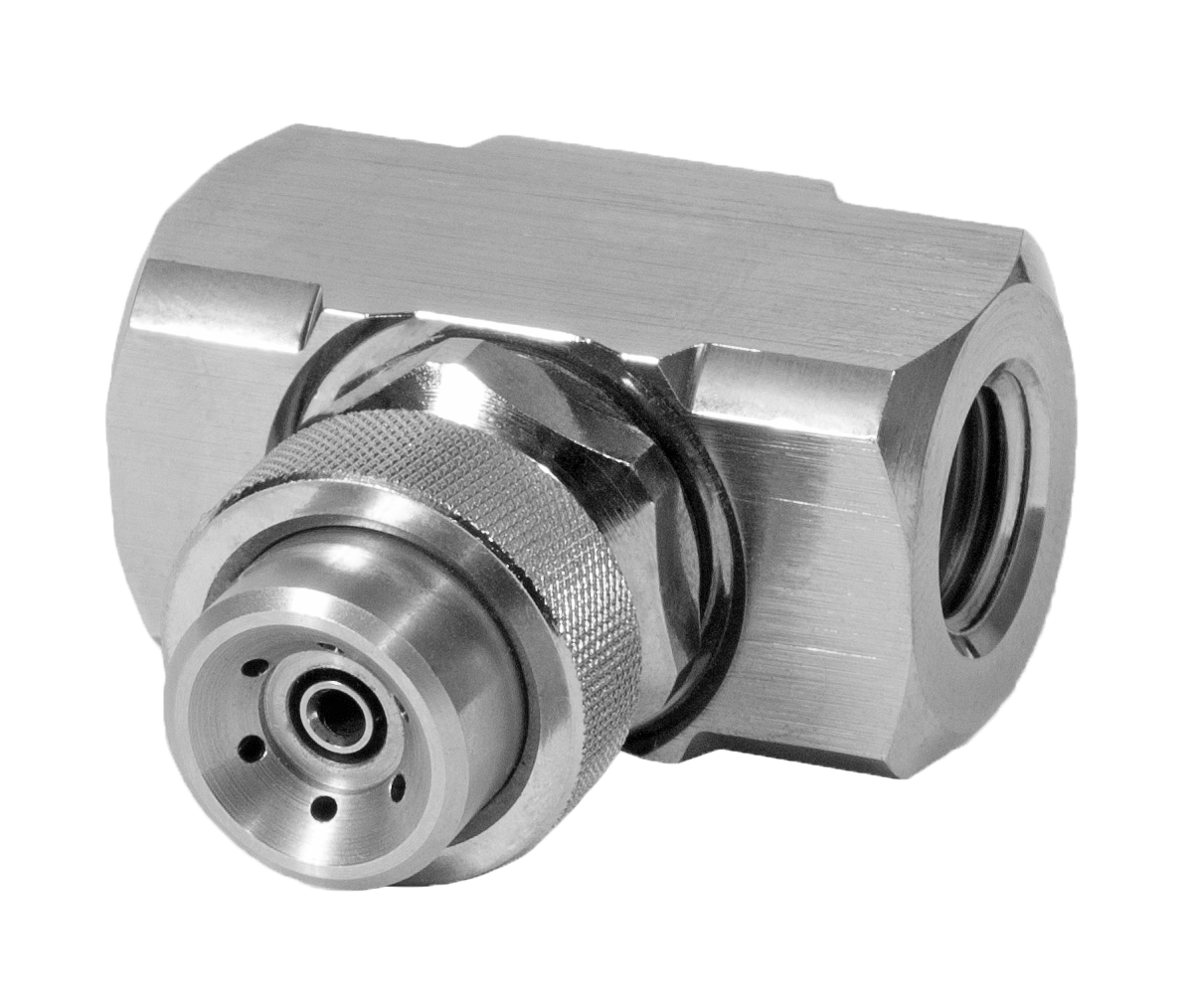

XAER Full Cone External Mix Air Atomising Nozzle

The XAER air atomising nozzle produces finely atomised sprays in a full cone pattern. The external mix design means that it can handle viscous fluids and also means control of the flow rates is simpler than with internal mix variants. These features mean the XAER is most commonly used for:

  • Moistening
  • Lubrication
  • Spraying Viscous Fluids
  • Dust Control
  • And more.

pdf_ic

Design Features

    • Requires pressurised air and fluid to operate
    • External mix allows for the spraying of viscous fluids
    • Modular design allows swapping between nozzle type by changing air and fluid caps
    • Different body options with variable inlet orientations
    • Adaptor for mounting the nozzles through walls
    • Optional air shut off system
    • Optional clean out pins

Spray Characteristics

    • Narrow spray angle (10°- 30°)
    • Precise metering of the liquid flow rate
    • Flow rates between 2.7 and 340 litres per hour
    • Moderate spray projection
    • Variable atomisation
