Flat Fan Internal Mix Air Atomising Nozzle

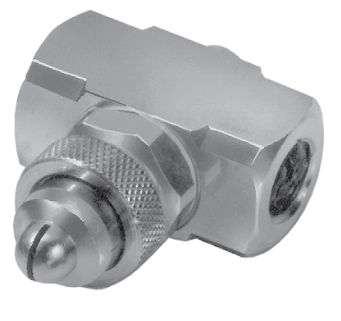

XAPF Flat Fan Internal Mix Air Atomising Nozzle

The XAPF air atomising nozzle produces a very finely atomised flat fan spray pattern. The internal mix design ensures the maximum level of droplet atomisation. These spray characteristics means that it is used in a variety of applications including:

  • Spray Coating
  • Moistening
  • Lubrication
  • Drum Coating
  • And more.

pdf_ic

Design Features

    • Requires pressurised air and fluid to operate
    • Internal mix
    • Modular design allows swapping between nozzle type by changing air and fluid caps
    • Different body options with variable inlet orientations
    • Adaptor for mounting the nozzles through walls
    • Optional air shut off system
    • Optional clean out pins

Spray Characteristics

    • Spray pattern: Flat Fan
    • Spray angles: 80° to 90°
    • Flow rates: 1-140 l/hr
    • Very fine atomisation
    • Moderate forward spray projection
XAPF Data image
