XAPR

Internal Mix Full Cone Air Atomising Nozzle

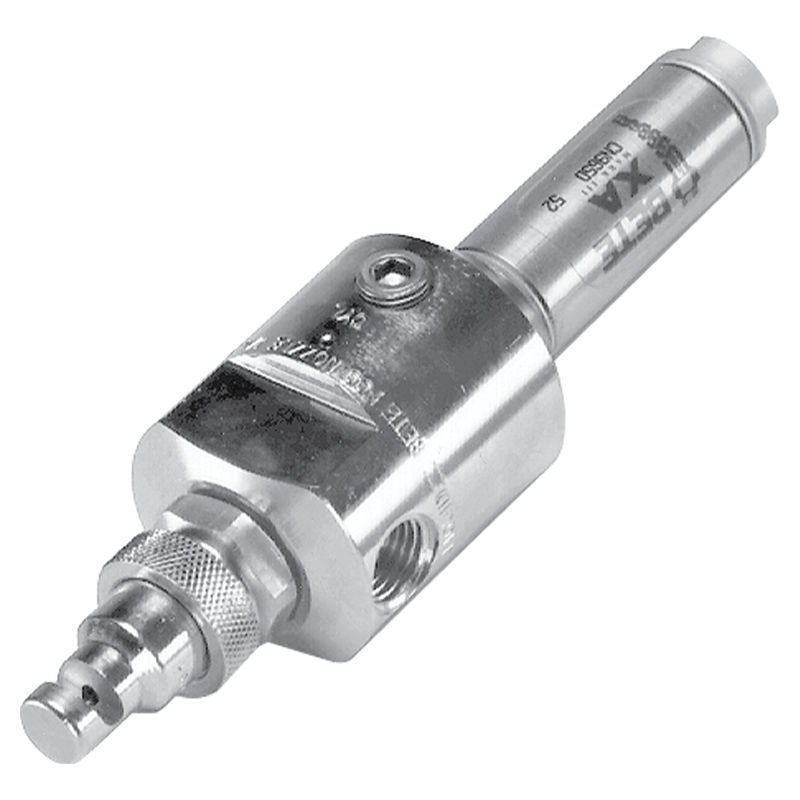

XAPR Internal Mix Full Cone Air Atomising Nozzle

The XAPR is an internal mix air atomising nozzle which delivers a narrow, full cone spray pattern. The internal mix design ensures very fine atomisation and the narrow cone means this spray is projected a long distance from the nozzle. This makes it exceptionally useful when fogs need to be distributed widely. The XAPR is used for:

  • Humidification
  • Dust Control
  • Disinfectant Fogging
  • And more.

pdf_ic

Design Features

    • Requires pressurised air and fluid to operate
    • Internal mix
    • Modular design allows swapping between nozzle type by changing air and fluid caps
    • Different body options with variable inlet orientations
    • Adaptor for mounting the nozzles through walls
    • Optional air shut off system
    • Optional clean out pins

Spray Characteristics

    • Spray pattern: Full Cone (narrow)
    • Spray angles: 12° to 22°
    • Flow rates: 1.4-250 l/hr j Very fine atomisation
    • Large forward spray projection (up to 8.5m
XAPR round spray pattern air atomising nozzle flow rate data
