XASF

Internal Mix Full Cone Air Atomising Nozzle

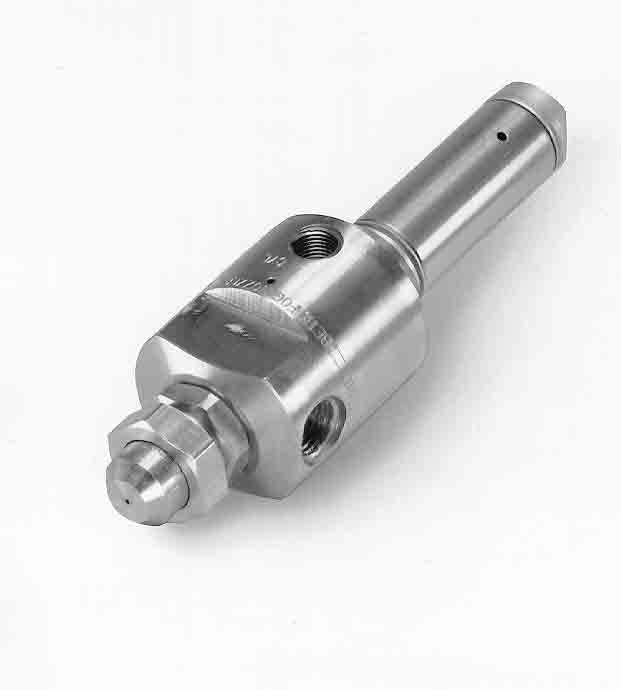

XASF Siphon Fed Flat Fan Air Atomising Nozzle

The XASF is a siphon fed, internal mix, air atomising nozzle. Its siphon fed deisgn means that the fluid feed does not need to be pressurised. So, no fluid pump is required. This design also allows for very low flow rates below 1 litre per hour. The XASF can be useful in a number of applications including:

  • Coating
  • Moistening
  • Lubrication
  • And more

pdf_ic

Design Features

    • Siphon fed - does not require pressurised fluid feed, only air
    • Internal mix
    • Very low flow rates
    • Modular design allows swapping between nozzle type by changing air and fluid caps
    • Different body options with variable inlet orientations
    • Adaptor for mounting the nozzles through walls
    • Optional air shut-off system
    • Optional clean out pins

Spray Characteristics

    • Spray pattern: Flat Fan j Spray angles: 60° to 85°
    • Flow rates: 0.8-7.6 l/hr
    • Very fine atomisation
    • Small forward spray projection
xasf data image
