Air atomising nozzle selection table

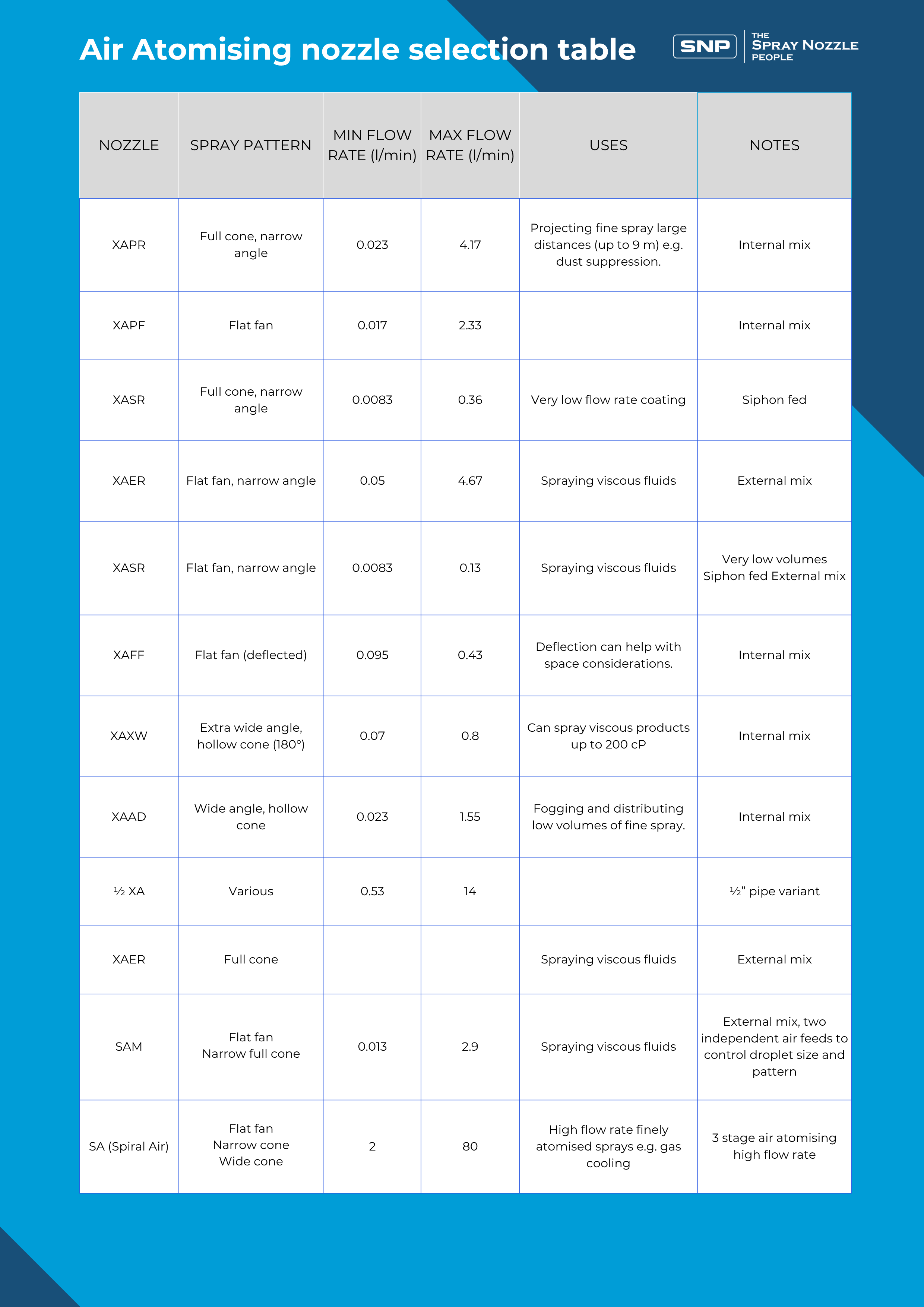

The table below summarises the properties of our air atomising nozzle range. By clicking on the boxes in the left had column of the table a datasheet for the nozzle in question will open in a separate web browser tab.
Nozzle Type | Spray pattern | Minimum flow rate (l/min) | Max flow rate (l/min) | Uses | Notes |
![XApr c XApr air atomising, full cone internal mix](/images/default-source/nozzle-boxes/xapr-c16531c2b02f3d77f541803455f06765ec606b07bb135bcdaf58168a928e2c3049b54cab569cf82abff000023d309c3049b54cab569cf82abff000023d309.jpg?sfvrsn=fda4c017_6) | Narrow angle cone | 0.023 | 4.17 | Projecting fine spray large distances (up to 9 m) e.g. dust suppression. | Internal mix |
![XApf c Flat Fan, Air atomising, Internal mix nozzle (XApf)](/images/default-source/nozzle-boxes/xapf-box.jpg?sfvrsn=a039050e_6) | Flat fan | 0.017 | 2.33 | | Internal mix |
![XAsr c XAsr air atomising, full cone, internal mix narrow spray angle nozzle](/images/default-source/nozzle-boxes/xasr-c38ae6ab69d0862b6037866b6e1c74971f7cc.jpg?sfvrsn=74ccea16_6) | Full cone | 0.0083 | 0.36 | Very low flow rate coating | Siphon fed |
![XAef c XAer air atomising , full cone, external mix, narrow spray angle nozzle](/images/default-source/nozzle-boxes/xaef-c555bc9294c6244836ff8d9f209e1052db84cbf5471f49b374955f11afc61448d73c2ffd6a97be3961bbaa7059b54cab569cf82abff000023d309a7059b54cab569cf82abff000023d309.jpg?sfvrsn=ed418c7_6) | Flat fan | 0.05 | 4.67 | Spraying viscous fluids | External mix |
![XAsr c XAsr air atomising, full cone, internal mix narrow spray angle nozzle](/images/default-source/nozzle-boxes/xasr-c38ae6ab69d0862b6037866b6e1c74971f7cc.jpg?sfvrsn=74ccea16_6) | Flat fan | 0.0083 | 0.13 | Spraying viscous fluids Very low volumes | Siphon fed External mix |
![XAff c flat fan air atomising nozzle](/images/default-source/nozzle-boxes/xaff-c6151698a95f8ae7b193b80efb14361f37f526b32ec45549d2c62f42b5f6d18b21350aad3316d1df92703.jpg?sfvrsn=a280dde7_6) | Flat fan (deflected) | 0.095 | 0.43 | Deflection can help with space considerations. | Internal mix |
![XAxw c Air atomising Hollow Cone Nozzle Extra Wide Angle](/images/default-source/nozzle-boxes/xaxw-c.jpg?sfvrsn=b312eb9b_6) | Extra wide angle hollow cone (180o) | 0.07 | 0.8 | | |
![XAad c Air atomising Hollow Cone Nozzle](/images/default-source/nozzle-boxes/xaad-c.jpg?sfvrsn=8de60c73_6) | Wide angle hollow cone | 0.023 | 1.55 | Fogging and distributing low volumes of fine spray. | Internal mix |
![half xa half inch pipe air atomising nozzles](/images/default-source/nozzle-boxes/half-xa.jpg?sfvrsn=b3e4e0ed_8) | Various | 0.53 | 14 | | ½” pipe variant |
![XAer c XAer full cone external mix air atomising nozzle](/images/default-source/nozzle-boxes/xaer-c.jpg?sfvrsn=25cf8479_6) | Full cone | | | Spraying Viscous fluids | External mix |
![SAM c SAM Air Atomising Nozzle](/images/default-source/nozzle-boxes/sam-c.jpg?sfvrsn=6a4cba9a_10) | Flat fan or narrow full cone | 0.013 | 2.9 | | Two independent air feeds to control droplet size and pattern |
![SA c Spiral air, 3 stage air atomising high flow rate nozzle](/images/default-source/nozzle-boxes/sa-c.jpg?sfvrsn=db49b856_9) | Flat fan Narrow cone Wide cone | 2 | 80 | High flow rate finely atomised sprays e.g. gas cooling | |
