Steam condensation for the chemical industry
Waste steam from various processes in a chemical plant often needs to be cooled.

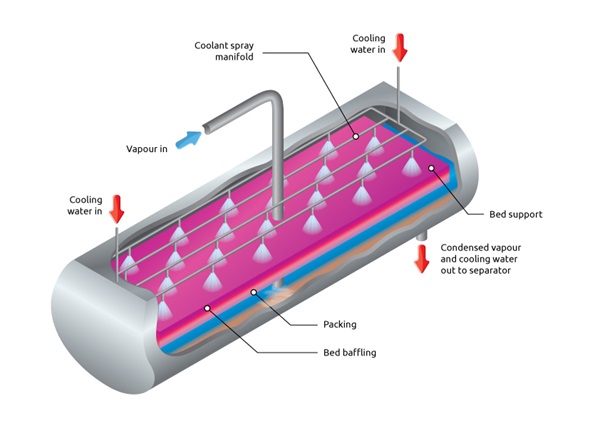

This can be achieved by spraying cold water into the steam flow. The spray then acts as a very high surface area heat exchanger and will rapidly cool and condense the steam back to a liquid state. In many cases the resulting warm water is then used for other applications in the factory.
![3---Steam-condenser2 3---Steam-condenser2](/images/default-source/drawings/3---steam-condenser2.jpg?sfvrsn=439cf192_4&MaxWidth=600&MaxHeight=500&ScaleUp=false&Quality=High&Method=ResizeFitToAreaArguments&Signature=9BCC5D04233F53D49C6B5EF372FE2B3F)
Nozzle selection criteria
• Full cone nozzles for maximum spray coverage
• Spray patterns at low pressures to minimise pump duty
• Corrosion resistant material
