Full Cone Nozzles - Axial Whirl Design

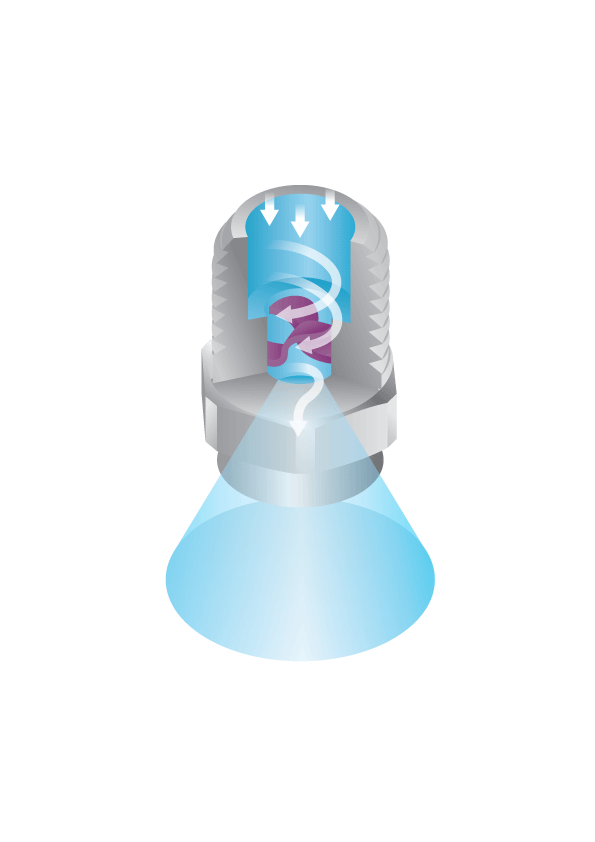

With this design of full cone nozzle the fluid is set into a whirl motion by an internal vein or whirl chamber. The resulting turbulence breaks up the liquid into droplets which are then shaped in to a full cone pattern as they exit the orifice.
![Axial Whirl Spray Nozzle Diagram](/images/default-source/nozzle-design-drawings/axial-whirl-full-cone-2.jpg?sfvrsn=93bb42ab_2)
BETE produce a number of different axial whirl full cone nozzles with different features. Full product information can be found by clicking on the relevant box below.
![](/images/default-source/nozzle-boxes/mp-c.jpg?sfvrsn=be919277_12)
To compare the features of all full cone nozzles please access the full cone nozzle cheat sheet by clicking on the orange button to the right hand side of this page.
